Détails du produit

Description

Ce hub UPTab DisplayPort 1.4 vers 3 DisplayPort Multi-Stream Transport (MST) permet trois modes d'affichage différents sur un maximum de trois écrans connectés à une seule sortie DisplayPort. Vous pouvez connecter un seul écran jusqu'à 8K à 60 Hz pour refléter le bureau de votre ordinateur. Ajoutez un deuxième écran et le hub étendra automatiquement l'image pour couvrir les deux écrans jusqu'à 5K à 60 Hz pour chaque écran. Connectez trois écrans et le hub s'ajustera automatiquement pour créer un mur vidéo 3x1, l'image unique couvrant les trois écrans jusqu'à 4K à 60 Hz pour chaque écran. Ce hub est idéal pour les gamers, les monteurs vidéo, les architectes et tous ceux qui travaillent avec des images ou des vidéos en ultra haute résolution.


Hub de transport multi-flux (MST) : un hub MST permet trois modes d'affichage différents sur un maximum de trois moniteurs connectés à une seule sortie DisplayPort.

Mode dupliqué : vous pouvez connecter un seul écran à des résolutions allant jusqu'à 8K à 60 Hz pour refléter le bureau de votre ordinateur.

Mode bureau étendu : connectez deux moniteurs et le hub étendra automatiquement l'image pour couvrir les deux écrans à des résolutions allant jusqu'à 5K à 60 Hz pour chaque écran.

Mode mur vidéo : connectez trois moniteurs et le hub s'ajuste automatiquement pour produire un « mur vidéo » 3x1, avec une image unique couvrant les trois écrans à des résolutions allant jusqu'à 4K à 60 Hz pour chaque moniteur.

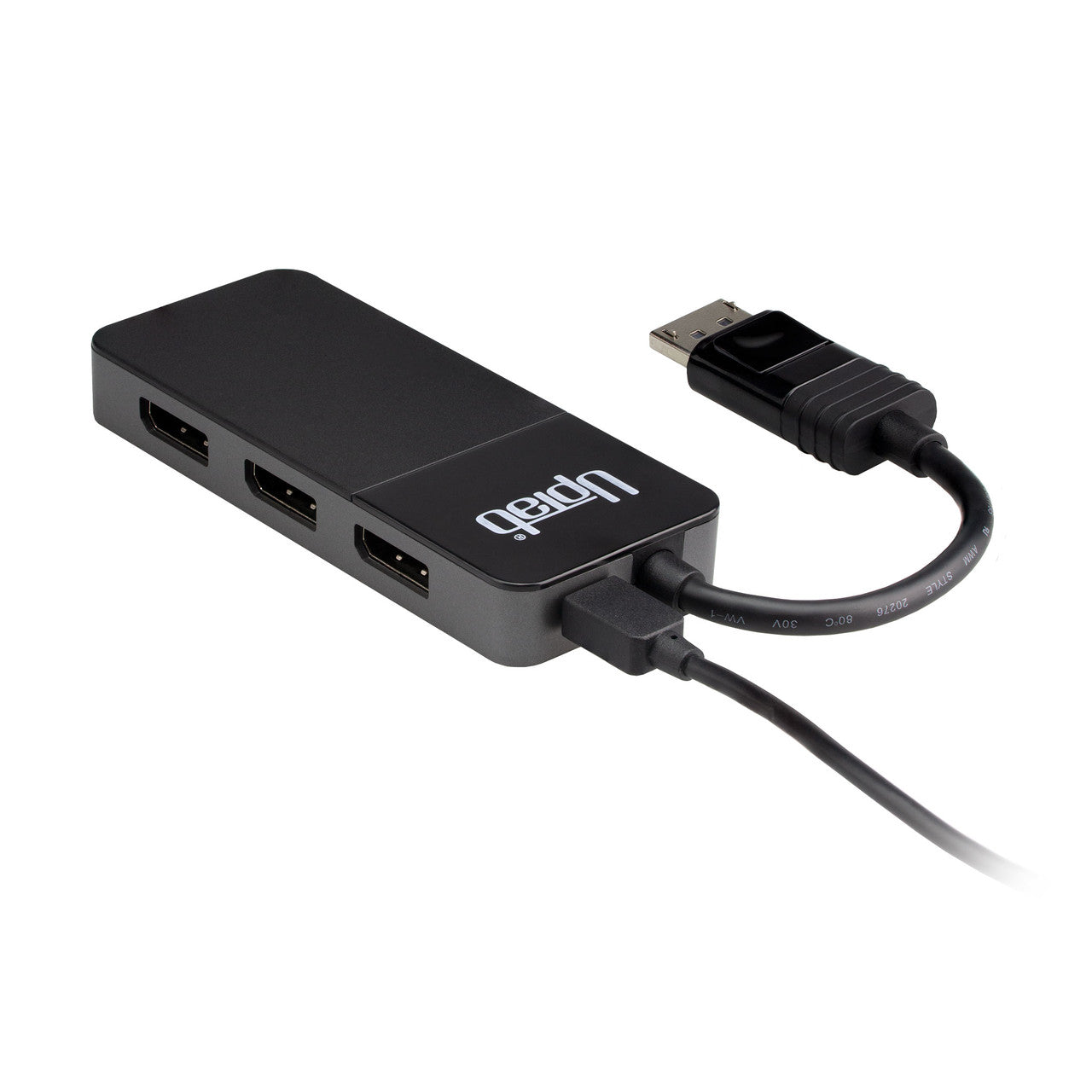

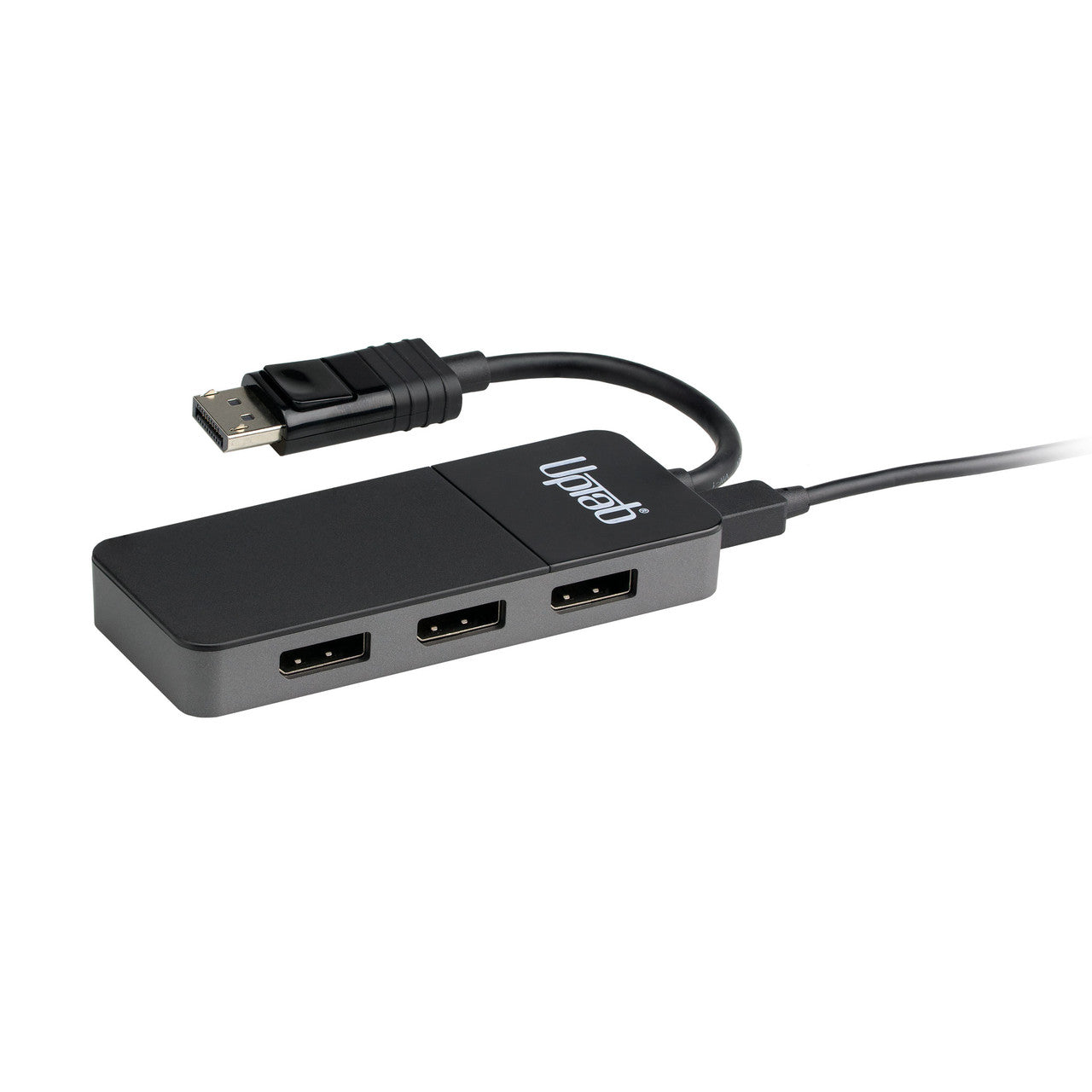

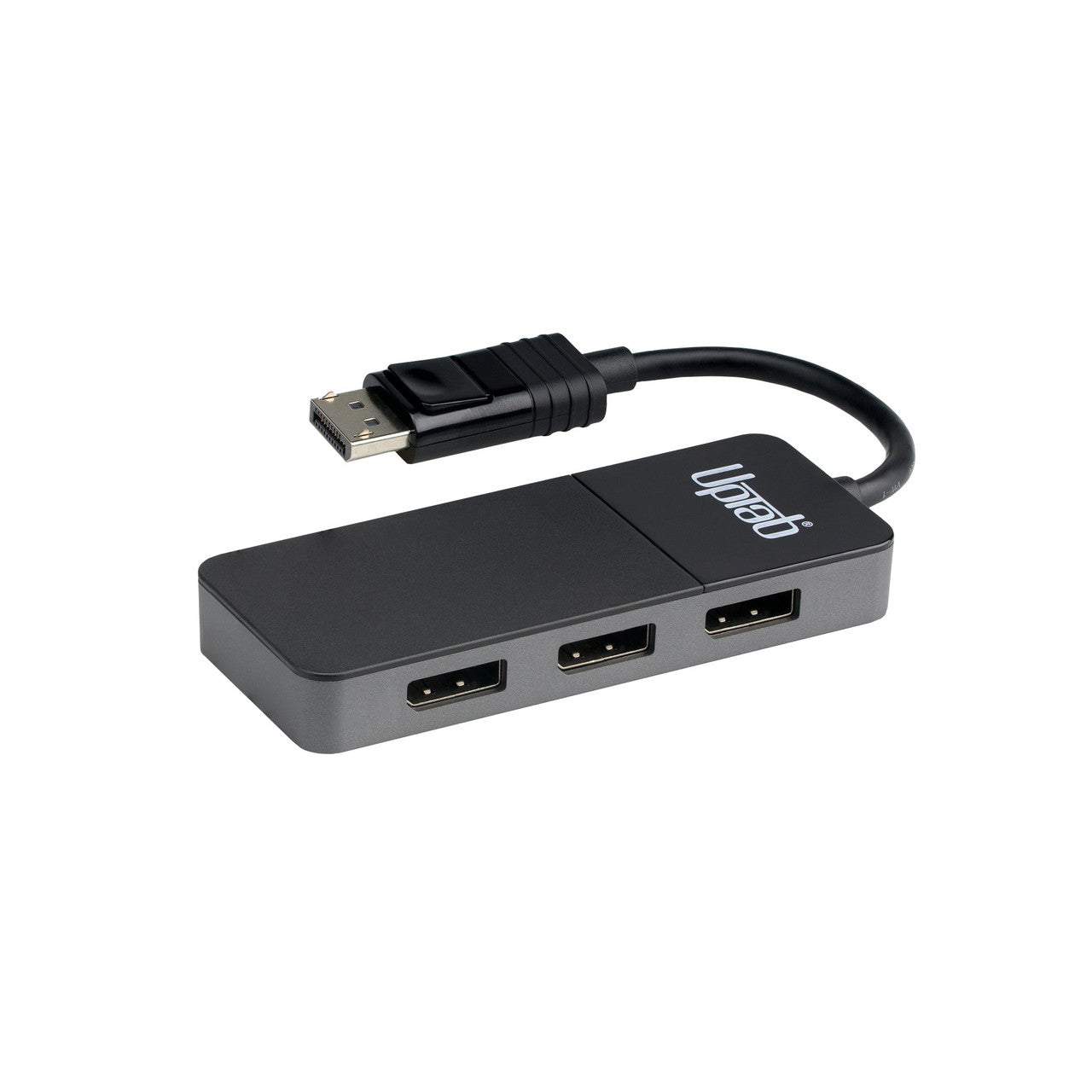

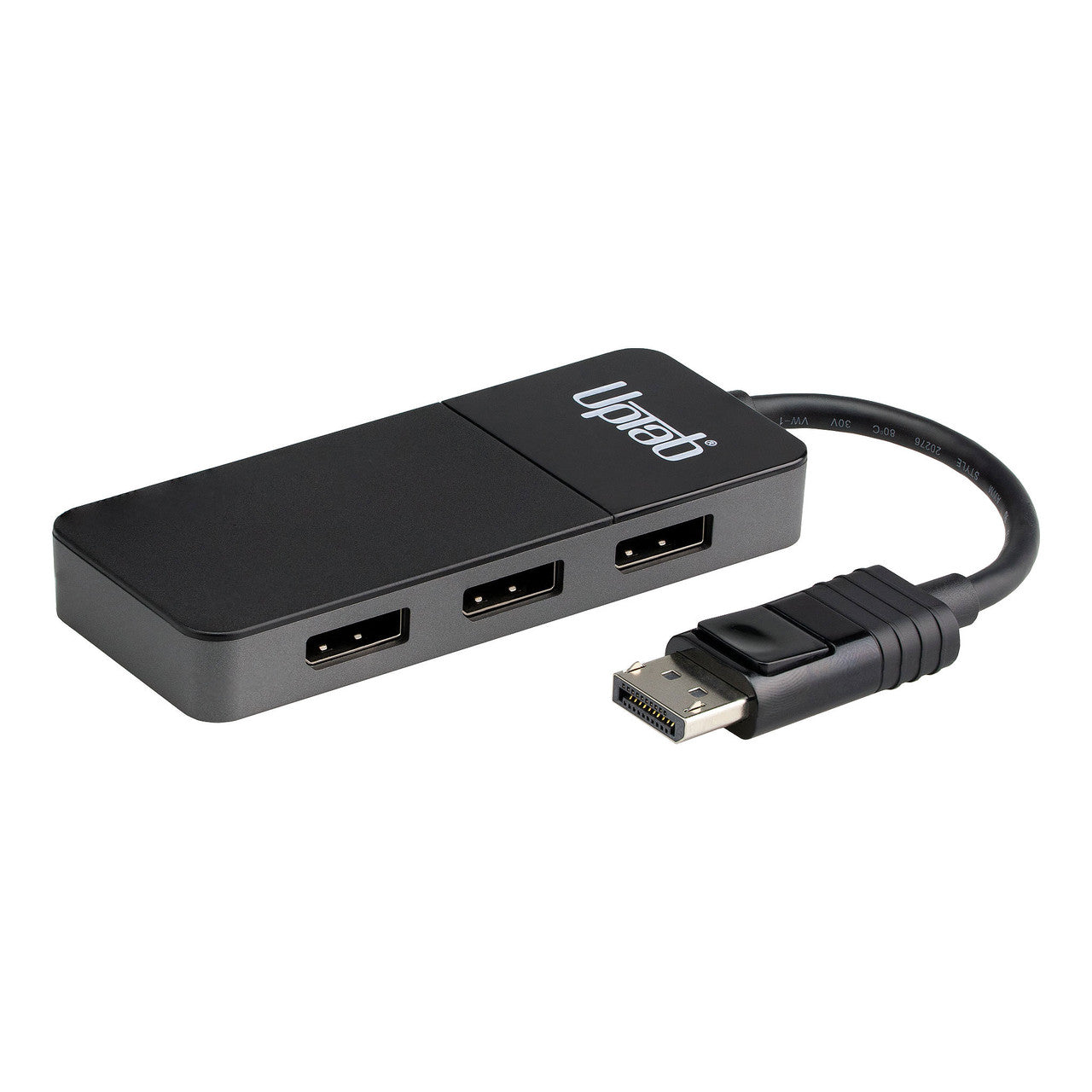

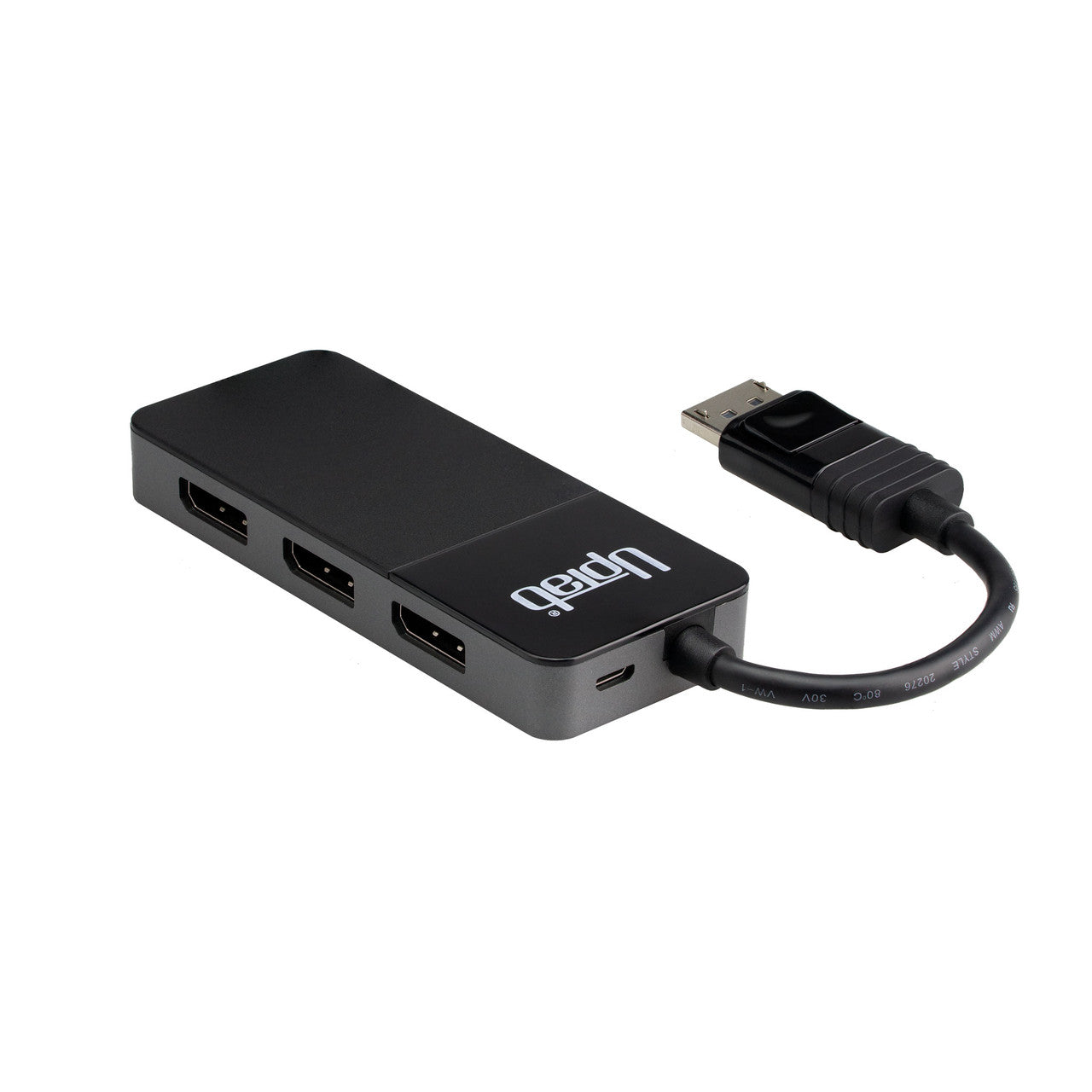

UPTab DisplayPort to 3 DisplayPort Splitter Adapter

Caractéristiques:

  • Entrée : DisplayPort 1.4
  • Sortir:
    • Moniteur DisplayPort 1.4 unique Prend en charge une résolution d'affichage jusqu'à 8K à une fréquence d'images de 60 Hz
    • Moniteurs Dual DisplayPort 1.4 Prend en charge une résolution d'affichage jusqu'à 5K à une fréquence d'images de 60 Hz
    • Trois moniteurs DisplayPort 1.4 prennent en charge une résolution d'affichage jusqu'à 4K à une fréquence d'images de 60 Hz
  • Prend en charge HDR High Dynamic Range, HDR10, HDR10+ et Dolby Vision
  • Prise en charge audio jusqu'à 8 canaux LPCM
  • Port micro USB pour alimentation externe (câble micro USB inclus)
  • Dimensions : 4 1/8" x 1 5/8" x 1/2"

UPTab DisplayPort to 1.4 3x DisplayPort Monitors

Dans la boîte :

  • 1 adaptateur DisplayPort 1.4 vers 3x DisplayPort
  • 1 câble USB vers Micro USB 40" (1 m)

Garantie : 1 an de garantie

Logiciel:
Télécharger la dernière version : Firmware 5.04.135

Customer Reviews

Based on 16 reviews
69%
(11)
6%
(1)
13%
(2)
13%
(2)
0%
(0)
E
Ed Magdalena
It Works

Works at it should and as expected

P
Phantom_kneo04
Good but I could not getting working using Nvidia Surround

I have triple 1440p 144Hz monitors with RTX 2080. It works as promised. I was able to run all three at max resolution with 144Hz using extended display. I have both left and right monitors connected to the splitter in my case.Also, I use 4th single monitor for productively and playing FPS games. My hope was to have all 4 monitors using DP and to seamlessly switch between the single monitor and the triples. I was able to do that for the most part. I did have several instance where the side monitors would flicker off & on and required a restart.Unfortunately, I could not get Nvidia Surround working using the DP splitter. I play a couple of racing titles require running Nvidia surround. I tried making a custom resolution but it caused my computer to restart unfortunately. I know I have an extreme setup so I that's why I gave it 4 stars. It should probably be fine for just extending/duplicating displays as described.

A
Alan C.
Worked for me

I changed out to a new desktop computer and the only output for a monitor was a single DisplayPort 1.4 outlet. I wanted to use two monitors in extended mode, and this hub did the trick. I can't say anything about how it works in the long term, but right now it is working perfectly.

m
michael sohyda
Works great for 3 1440p monitors

I needed something to connect 3 27" 1440p 144Hz monitors that I normally have connected directly to my desktop (2080ti graphics card) to a docking station for my work computer while I'm working from home. The 2080ti supports DisplayPort 1.4 while the docking station/laptop only supports 1.2 (HP Zbook 15 G2) so I wanted something that would work for both. This was the cheapest I could find that supports DP 1.4 and has 3+ ports and so far it's working great.Some caveats that I've found is there are some limitations for both computers. On the laptop I can do two monitors at 1440p @ 60Hz and the third at 1080p @ 60Hz. This is purely a limitation of the computer/docking station though because I can run all 3 at 1440p on the desktop. However on the desktop I can only run them up to 120Hz, and I can't run all of them that high. It seems I can run 1-2 at 100 or 120Hz and the third at 60Hz.I was also having some issues with screens flickering and green/red dots moving around the screens in dark areas, but that was only on the laptop. After blowing out the docking station a little and plugging the connector back in a few times it seems to be working fine. I also wasn't able to use a USB port on the docking station to power it, but using a USB port on the laptop itself, a charging brick, or a USB port on another computer worked without any issues. I suspect this is because of how the USB ports work on my docking station with a keyboard and mouse already connected.Even though I've only been using it for a week or so, I would highly recommend this hub over spending 2-3x as much on a new docking station with 3 DisplayPort connectors or buying a similar 3-port hub locally.

V
Velcro
Does what I need with no fuss.

With everything going on I had started to work from home and was sent home with my work computer and one monitor. I decided to use that monitor in addition to my own - which was fine for the work computer but my home computer had one displayport output. I grabbed this hub (after making sure my video card could handle it) and within 10-15 minutes had a working dual monitor system on my home computer as well. It's been several weeks and no issues yet!
